INDUSTRIAL DRAIN, LOW - (766.402.110)
×
![]()
Part Of the Series: Drain-No membrane-200
Type no.: 766.402.110
EAN no.: 5705499110265
VVS no.: 153041116
LVI no.: 3303546
Size: 200x200

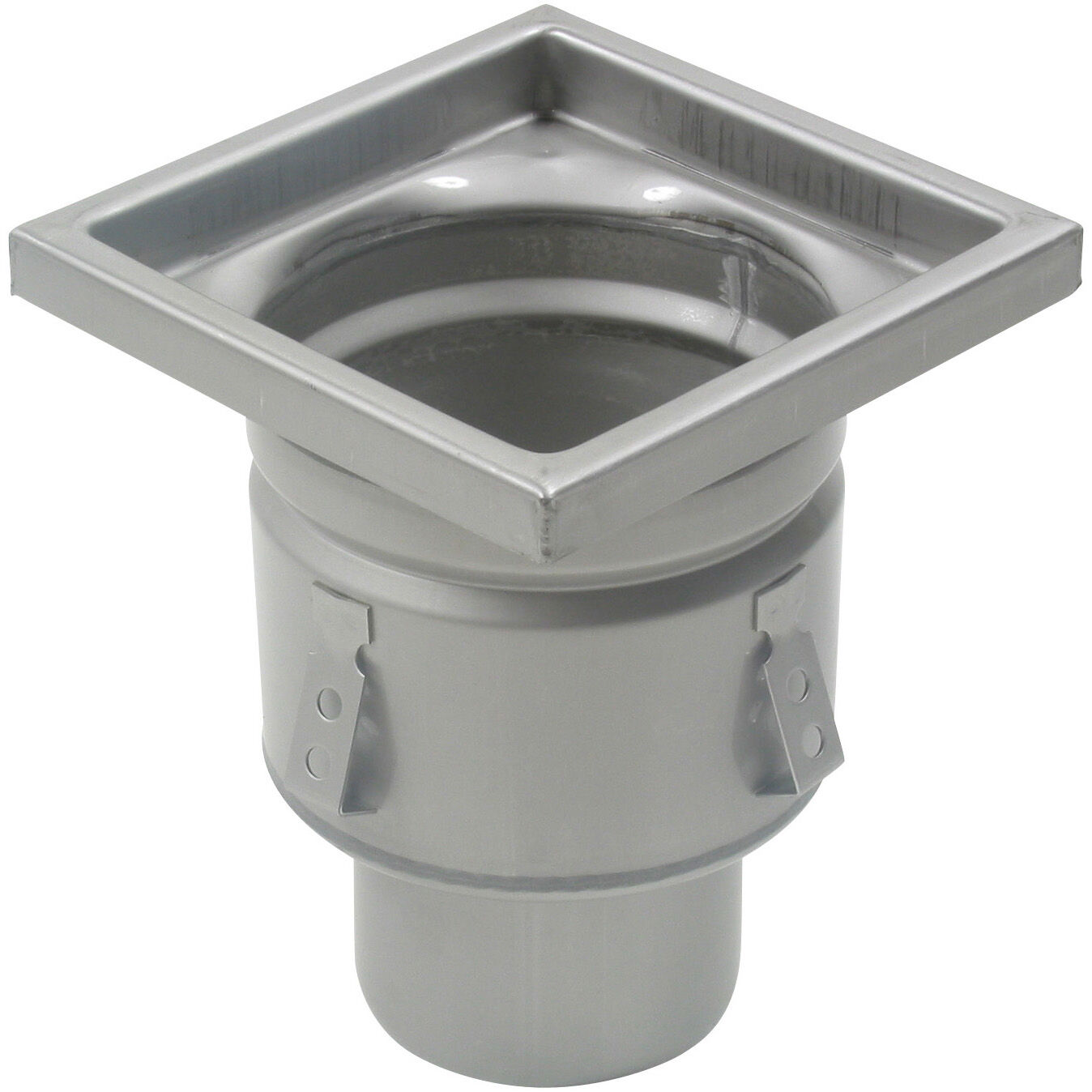

INDUSTRIAL DRAIN, LOW
-Floor: concrete and tiled
-No membrane, frame: 200x200mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-324
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 200x200 |
| Size of Frame (Inch) | 7-7/8 x 7-7/8 |
| Weight (kg) | 1.96 |
| Weight (lbs) | 4.32 |
-
Approval Information
For approval information, please refer to the below approval certificates.
