INDUSTRIAL DRAIN - (763.402.075)
×
![]()
Part Of the Series: Drain-No membrane-200
Type no.: 763.402.075
EAN no.: 5705499109900
RSK no.: 7121822
NRF no.: 3396091
LVI no.: 3303601

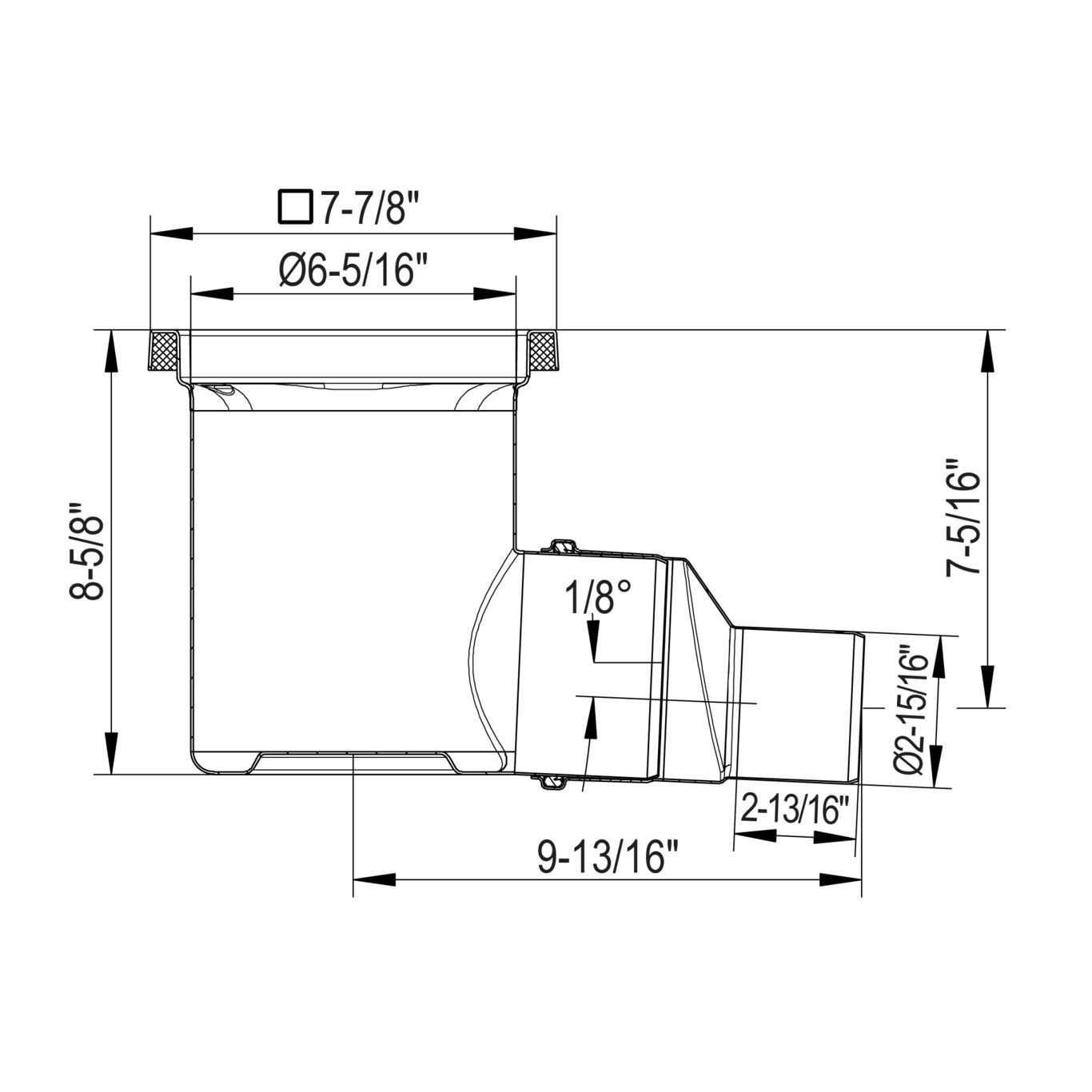

Size: 200x200

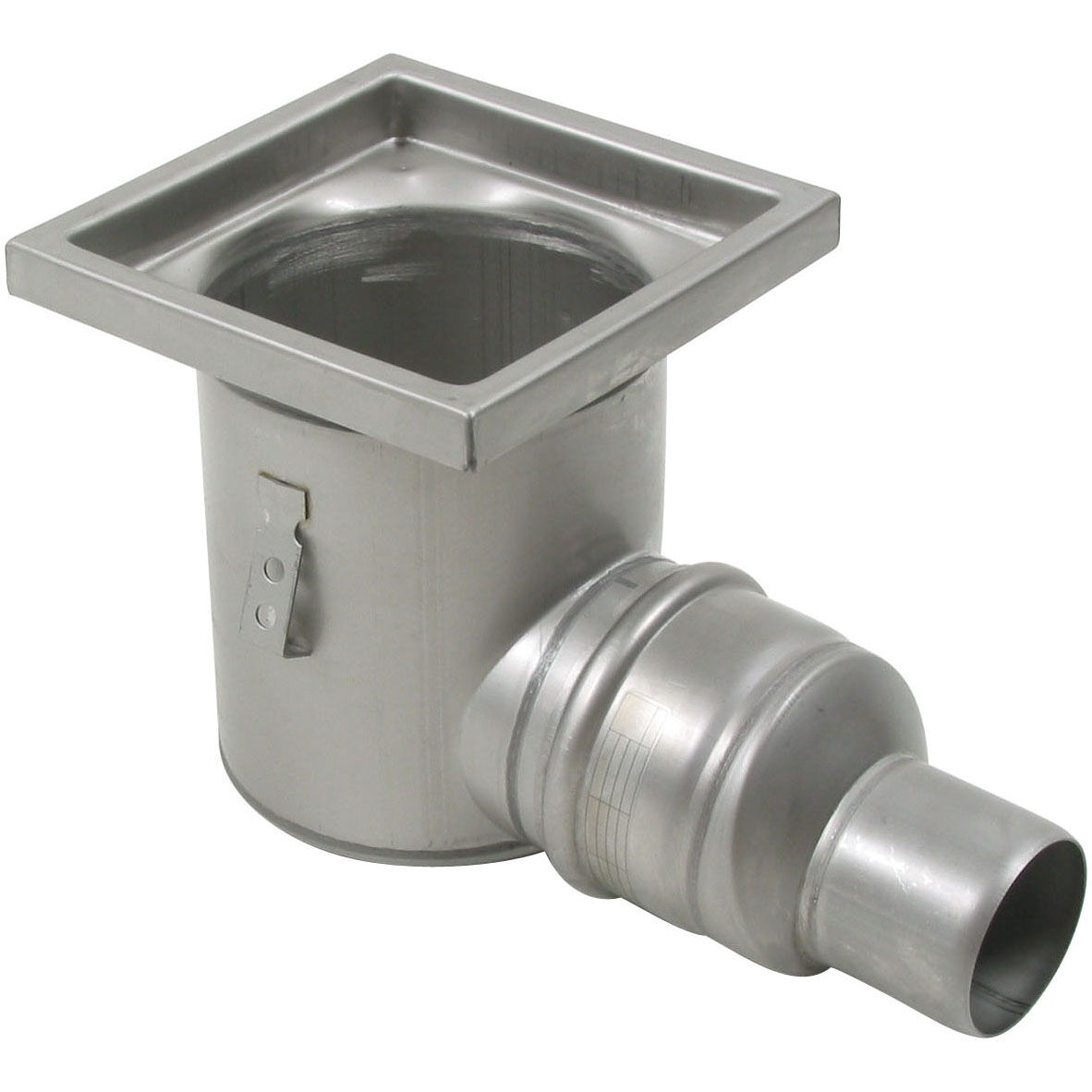

INDUSTRIAL DRAIN
-Floor: concrete and tiled
-No membrane, frame: 200x200mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-313-SO
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Horizontal |
| Shape | Square |
| Size (mm) | 200x200 |
| Size of Frame (Inch) | 7-7/8 x 7-7/8 |
| Weight (kg) | 2.71 |
| Weight (lbs) | 5.97 |
-
Approval Information
For approval information, please refer to the below approval certificates.
