INDUSTRIAL DRAIN - (763.602.075)
×
![]()
Part Of the Series: Drain-Vinyl-232
Type no.: 763.602.075
EAN no.: 5705499110142
RSK no.: 7121830
NRF no.: 3396362
LVI no.: 3303631
Size: Ø232

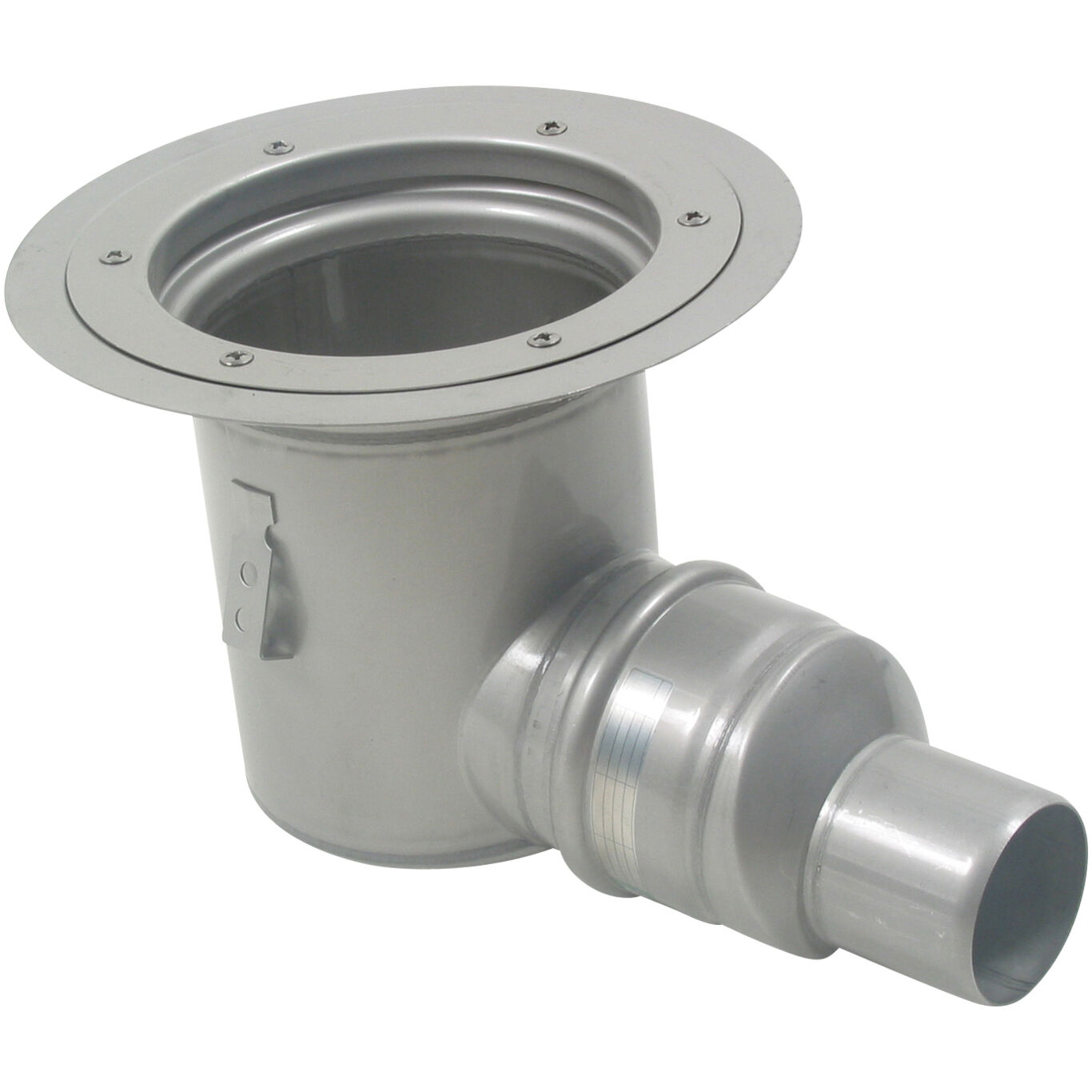

INDUSTRIAL DRAIN
-Floor: vinyl
-Frame: Ø232mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-513-SO
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 214 |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Horizontal |
| Shape | Round |
| Size (mm) | Ø232 |
| Size of Frame (Inch) | Ø9-1/8 |
| Weight (kg) | 2.86 |
| Weight (lbs) | 6.31 |
-
Approval Information
For approval information, please refer to the below approval certificates.
