BT Trench Drains

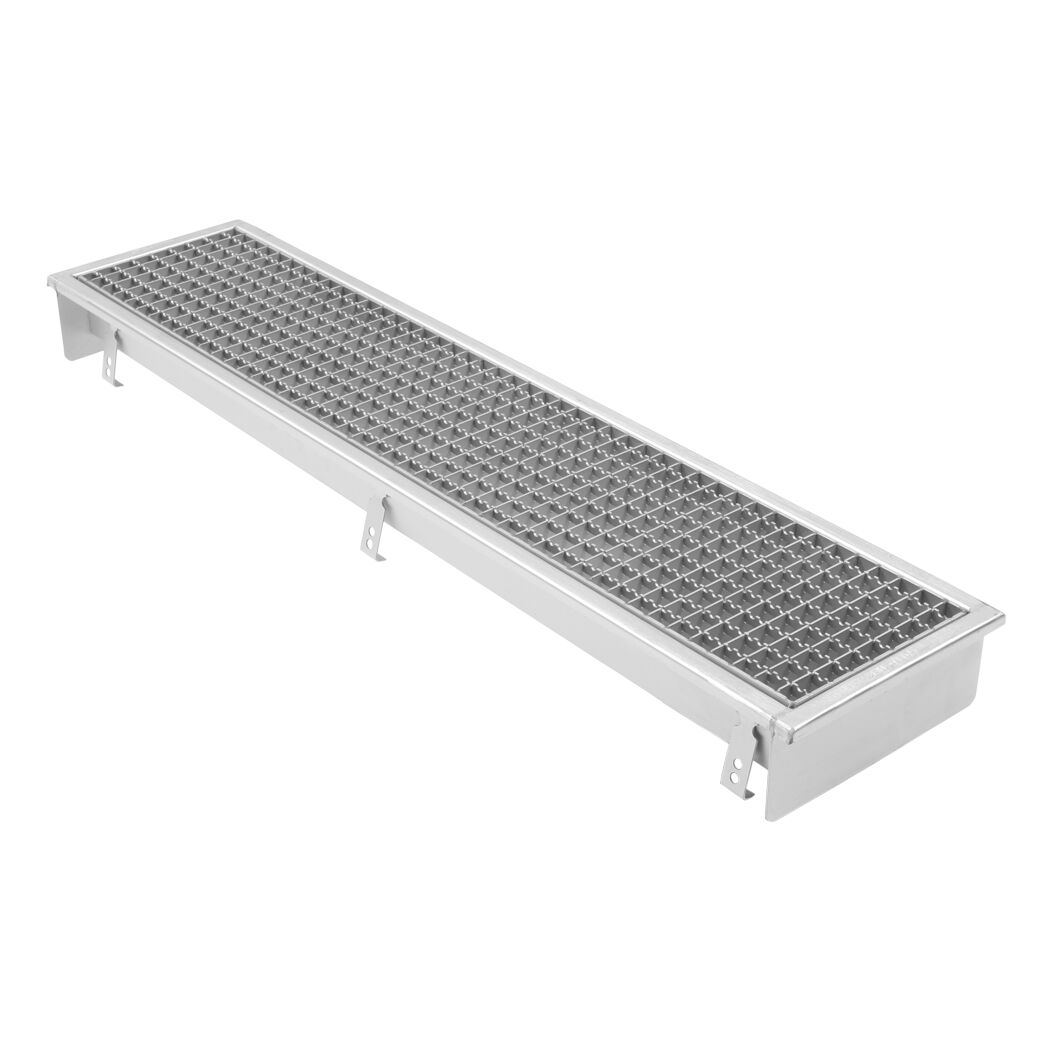

BT6_670Mesh(2)_1C Product Image

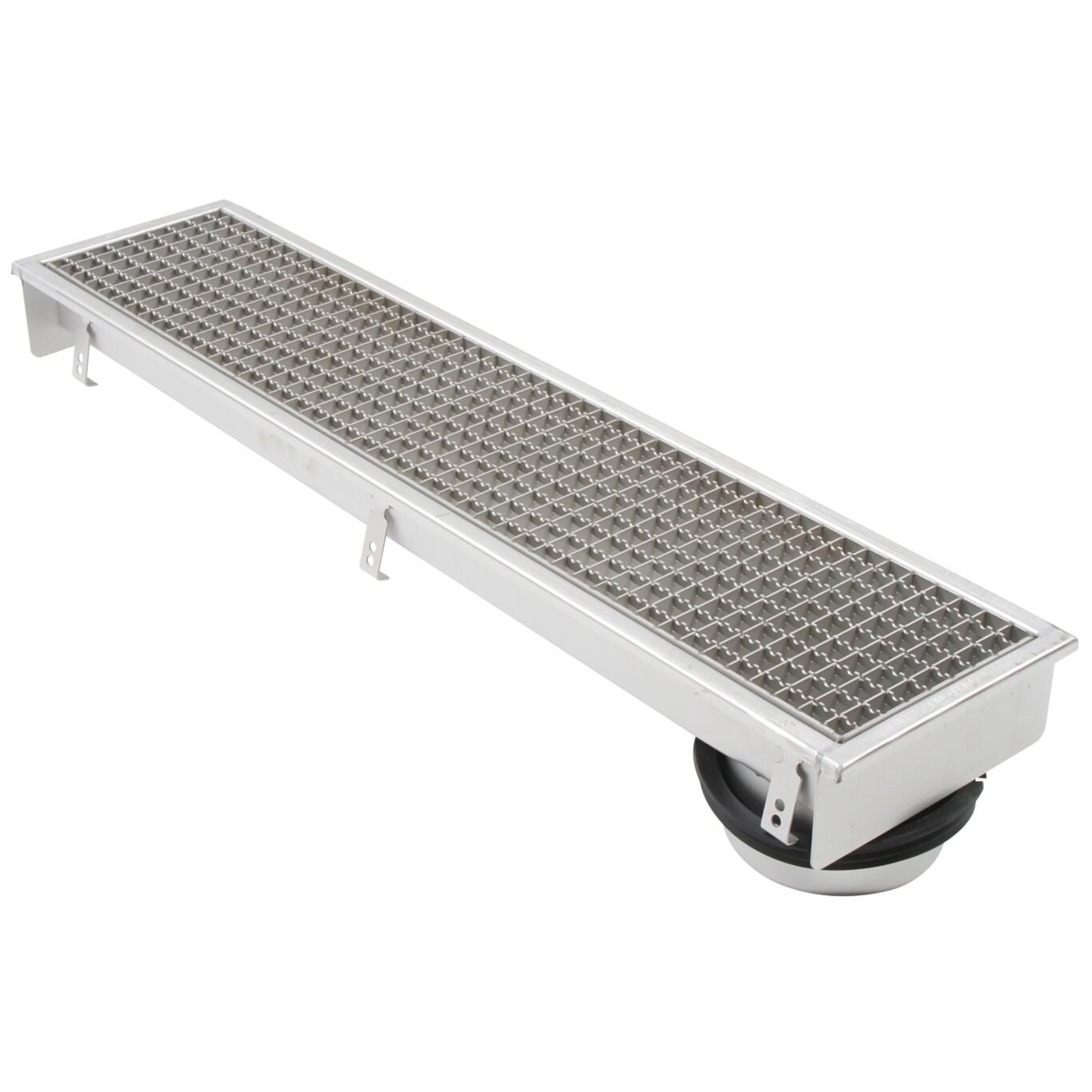

BT6_670Mesh Product Image

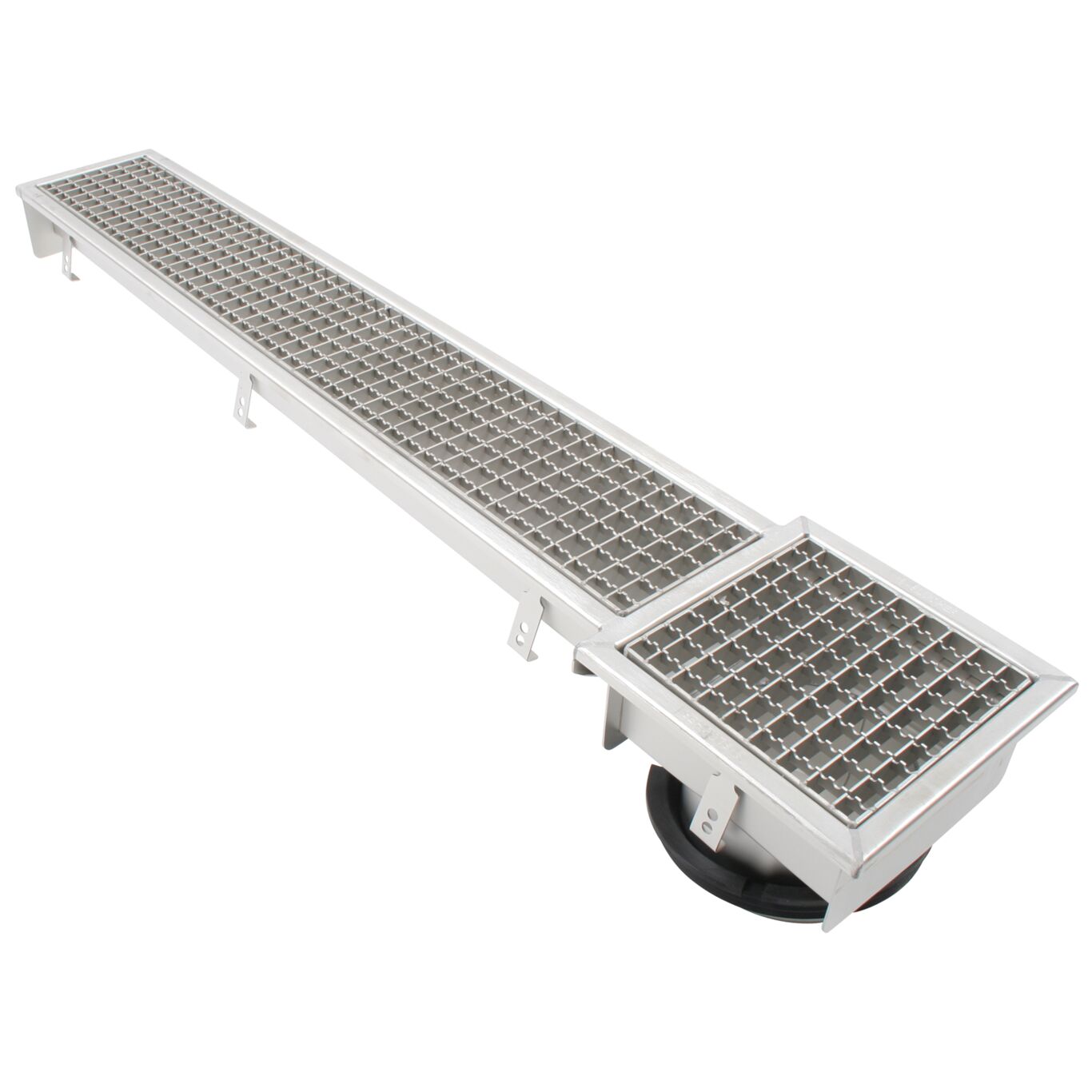

BT6-0_671Mesh Product Image
×

Stock or Custom Order Pre-Sloped Trench Drains

Download CAD Collections

2d DWG files

3d STP files


Download MasterSpec Documents

MasterSpec

BLÜCHER Series BT AISI Type 304 stainless steel pre-sloped trench drain, (specifiy) wide x (specify) long, with 1% longitudinal slope and 160 degree cross fall, 1"(25mm) thick mesh grating, and spigot outlet.


Stock Sizes (Ordering # / Description)

BT6-4EO-X5 / 6"(147) x 5'(1540) with 4"(110) End Outlet

BT6-4CO-X5 / 6"(147) x 5'(1540) with 4"(110) Center Outlet

BT6-4EO-X8 / 6"(147) x 8'(2556) with 4"(110) End Outlet

BT6-4EO-X10 / 6"(147) x 10'(3056) with 4"(110) End Outlet

BT6-4CO-X10 / 6"(147) x 10'(3056) with 4"(110) Center Outlet

BT6-4EO-X20 / 6"(147) x 20'(6088) with 4"(110) End Outlet

BT6-4CO-X20 / 6"(147) x 20'(6088) with 4"(110) Center Outlet

BT12-6EO-X5 / 12"(297) x 5'(1540) with 6"(160) End Outlet

BT12-6CO-X5 / 12"(297) x 5'(1540) with 6"(160) Center Outlet

BT12-6EO-X10 / 12"(297) x 10'(3056) with 6"(160) End Outlet

BT12-6CO-X10 / 12"(297) x 10'(3056) with 6"(160) Center Outlet


Pre-Sloped Trench Drain with Mesh Grating - Custom Lengths & Outlet Locations

BT3 / 3"(77) W - Specify Length, Outlet Size & Location

BT6 / 6"(147) W - Specify Length, Outlet Size & Location

BT8 / 8"(197) W - Specify Length, Outlet Size & Location

BT12 / 12"(297) W - Specify Length, Outlet Size & Location

BT16 / 16"(397) W - Specify Length, Outlet Size & Location

BT20 / 20"(497) W - Specify Length, Outlet Size & Location

BT24 / 24"(597) W - Specify Length, Outlet Size & Location

BT28 / 28"(697) W - Specify Length, Outlet Size & Location

BT32 / 32"(797) W - Specify Length, Outlet Size & Location


Pre-Sloped Trench Drain w/Surface Clamp & Mesh Grating - Custom Lengths & Outlet Locations

BTV6 / 6"(147) W - Specify Length, Outlet Size & Location

BTV8 / 8"(197) W - Specify Length, Outlet Size & Location

BTV12 / 12"(297) W - Specify Length, Outlet Size & Location

BTV16 / 16"(397) W - Specify Length, Outlet Size & Location

BTV20 / 20"(497) W - Specify Length, Outlet Size & Location

BTV24 / 24"(597) W - Specify Length, Outlet Size & Location

BTV28 / 28"(697) W - Specify Length, Outlet Size & Location

BTV32 / 32"(797) W - Specify Length, Outlet Size & Location


Options (Order Suffix / Description)

-316 / Type 316L Stainless Steel

-B / 4"(110) Sediment Basket

-B / 6"(160) Sediment Basket

-FC / Outlet with Membrane Clamp

-LD / Grate Locking Device

-O / Outlet Box

-SB / 6"(160) Sand bucket

-GC / Glass Catcher
